Product features:

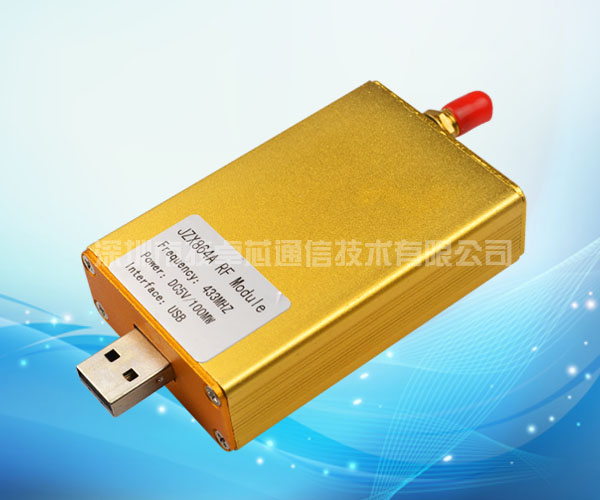

Using CC1000 chip, small volume, aluminum alloy shell, USB interface, plug and play, easy to use;
High receiving sensitivity, steady transmission.

Product application:
Data control and data transmission electrical water table three site copy, wireless LED display screen, smart card, access control attendance, reactive power compensation, intelligent teaching equipment, physical detection intelligent equipment, measuring equipment, automatic control, Home Furnishing intelligent field etc..

The technical indexes of the product:
It uses FSK modulation, reliable transmission line of sight distance up to 500m;
The carrier frequency of 433MHz, can also be customized 868M/915M carrier frequency; ISM band, without the need to apply for;
It provides 8 channels;
The interface / channel rate: 1200/2400/4800/9600/19200bps;
The interface mode: USB;
The transceiver, half duplex transceiver, data conversion automatically, as long as the interface to the sending / receiving data can be, the switching time is short;
The transparent data transmission, data frame transmission longer;
It can be used for point to point, point to multi point, point to multipoint communication combination etc.;
False data filtering out the air auto generated, long-term use of good reliability, low failure rate;
The low power consumption and sleep function: the power of 100MW, receives the current <15mA, the emission current <100mA;
The power supply: DC +4.5V~+5.5V;
The temperature of 75 DEG C: -25;
The volume: 70mm * 45mm * 19mm (not including antenna); weight: 70 grams;
The exchange type: JZ86 series products;
The standard antenna: antenna, antenna length elbow short radius elbow.
